CO-PROCESSING BIOGENIC TYRE PYROLYSIS OIL & CRUMB RUBBER INTO SUSTAINABLE ROADS

Sustainable Development Goals

Current Project Status:
Completed | Feasibility Study
Organizations Involved:
Klean Industries, BMT Group Construction, Several Tyre Recycling Companies
Services:
Design & Engineering, Component Supply, Feasibility Study, Due DiligenceSupply Chain Management

Klean Industries and BMT Construction Group are pioneering the production of circular roads in Vietnam, utilizing TPO and crumb rubber to blend recycled tire materials into both the fuel and the asphalt mix, creating high-performance, fully recyclable pavement.

Introduction:

Vietnam’s booming infrastructure sector is laying thousands of kilometers of new roads each year to support economic growth and regional connectivity. But traditional asphalt production is carbon-intensive, resource-depleting, and heavily reliant on virgin fossil fuels. As Vietnam strives to reduce emissions and embrace circular economy principles, back in 2012 Klean Industries and BMT Construction Group collaborated to investigate and develop a groundbreaking approach and opportunity: producing 100% recyclable roads using tire-derived materials specifically, tire pyrolysis oil (TPO) as both a fuel and a binder modifier, and crumb rubber as a polymer additive in high-performance, rubberized asphalt.

This initiative marks a significant milestone in circular infrastructure, utilizing end-of-life tires to create roads and then returning those roads to the resource cycle at the end of their lifespan.

The Challenge:

Conventional road construction in Vietnam relies on fossil-based bitumen and diesel fuels, both of which are imported and subject to volatile costs. Simultaneously, the country faces a growing end-of-life tire (ELT) problem, with millions of scrap tires generated annually and limited environmentally sound disposal options.

The asphalt industry in Vietnam, while modernizing rapidly, still lacks scalable systems to integrate sustainable materials into mainstream production. Key technical hurdles include fuel compatibility in burners, binder formulation stability when modified with alternative oils, and the integration of crumb rubber into polymer-modified asphalt (PMA) without compromising viscosity, durability, or temperature performance.

Moreover, achieving a closed-loop system where waste tires not only provide fuel but also become part of the road surface itself requires both technological innovation and commercial commitment.

The Solution:

This project offers a transformative opportunity to address three major problems at once:

  • Reduce carbon emissions and fossil fuel dependence by replacing diesel and coal-based fuels in asphalt burners with TPO, a fuel derived entirely from waste tires.
  • Improve road performance through crumb rubber–modified asphalt, which offers superior elasticity, crack resistance, and noise reduction over conventional bitumen blends.
  • Establish a circular materials flow where Vietnam’s ELTs are converted into high-value infrastructure inputs, literally paving roads with recycled tires.

By using TPO as both a fuel and a binder additive, and pairing it with crumb rubber, the project delivers a fully circular, fully functional road surface that meets performance standards while dramatically improving lifecycle sustainability. The long-term impact includes extending pavement life, reducing maintenance costs, and reducing both greenhouse gas (GHG) emissions and landfill dependency.

The Outcome:

At the heart of this initiative is the knowledge shared regarding pyrolysis technologies, including Klean Industries’ proprietary technologies for plastic and tires, with a focus on utilizing tire-derived products, such as those extracted from end-of-life tires, to produce high-quality TPO, carbon black, and steel. The TPO produced is refined and conditioned for use in two key roles at BMT’s asphalt production sites:

  • TPO as Fuel: TPO is fed directly into the burners of BMT’s hot-mix asphalt plants, replacing traditional fossil fuels. The high BTU value of TPO (comparable to diesel) ensures consistent flame temperatures, while its lower sulfur content (post-treatment) supports cleaner combustion. This reduces the carbon footprint of asphalt production by up to 30% on a fuel basis.
  • TPO as Binder Modifier: A controlled percentage of TPO is blended into the bitumen binder formulation (typically between 5–10%) to improve flow characteristics and enhance adhesion. The hydrocarbon profile of TPO integrates well with bitumen, especially when stabilized with emulsifying agents developed by Klean.
  • Crumb Rubber Integration: Crumb rubber, produced from the same tire feedstock, is incorporated into the binder to create a polymer-modified rubberized asphalt mix. This material significantly enhances fatigue resistance, reduces rutting, and enables roads to withstand high temperature variations, a critical factor in Vietnam’s climate.

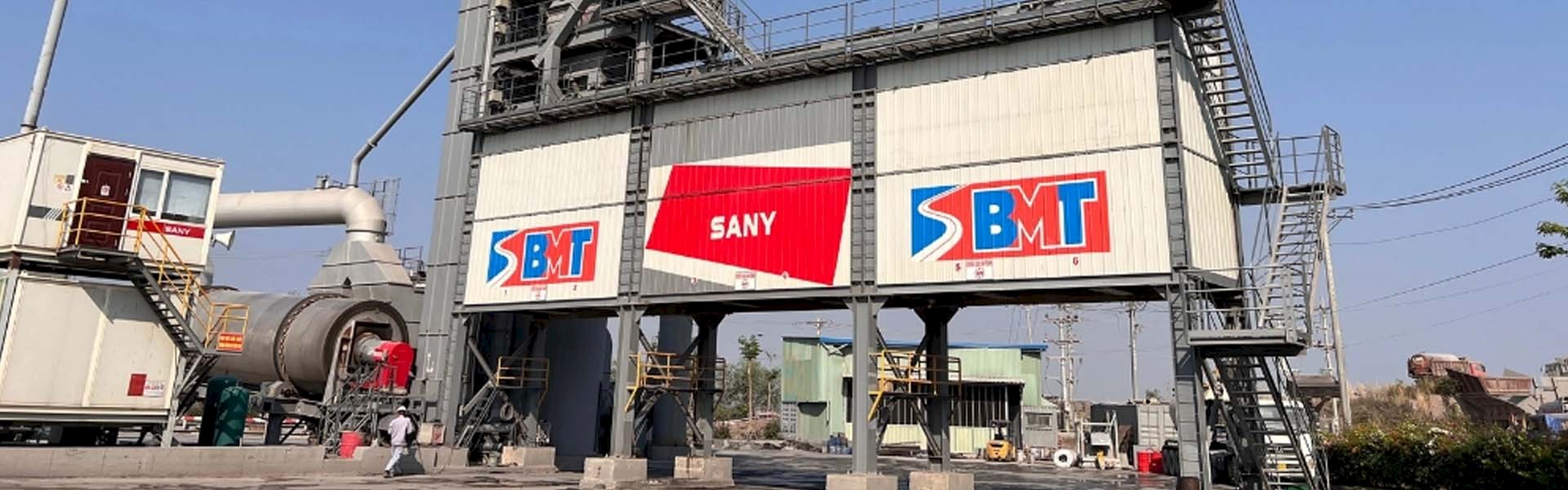

BMT Construction Group, with multiple state-of-the-art asphalt plants across Vietnam, brings the production capacity and in-house lab testing to scale this technology. Utilizing in-line blending systems and advanced temperature control, they consistently mix crumb rubber and TPO-enhanced binders into hot-mix asphalt batches, achieving performance metrics that meet or exceed conventional road specifications.

The result is a next-generation pavement that is:

  • Fully recyclable at end-of-life,
  • Designed for high-traffic applications,
  • Resistant to temperature extremes,
  • Quieter under vehicle load, and
  • Derived almost entirely from recycled waste tires.

This collaboration not only creates a blueprint for tire-to-road systems in Southeast Asia but also showcases how targeted technology deployment, local partnerships, and circular design thinking can reshape national infrastructure from the ground up.

Paving the Way for a Tire-to-Road Future

Vietnam is proving that world-class infrastructure can be built from waste. With tire pyrolysis oil and crumb rubber powering and enhancing every kilometer of pavement, this project sets a new standard for circular road construction.

Explore how your organization can replicate this model.

Connect with Klean Industries and start building infrastructure that never goes to waste >> GO.

This project addresses the United Nations Sustainable Development Goals (SDGs) by considering the goals and associated targets illustrated by the WBCSD’s Tyre Industry Project (TIP). TIP offers a framework for action that outlines impactful pathways for the tyre sector to contribute to the Sustainable Development Goals (SDGs). To learn more about how Klean's approach, solutions, and technologies contribute to advancing the SDGs, please review the report "Sustainability Driven: Accelerating Impact with the Tyre Sector SDG Roadmap". See: https://www.wbcsd.org/Sector-Projects/Tire-Industry-Project/End-of-Life-Tires-ELTs
